Ultraprobe® 2000
The Ultraprobe® 2000 can heterodyne ultrasound into audible range providing accurate sound reproduction.
Sensitive only to ultrasonic frequencies, the Ultraprobe 2000 will not respond to the low frequency noises often associated with most plant equipment. Therefore, the “gun” can be effectively utilized in extremely loud environments.
Fast, accurate, and designed for ease of use, it often takes no more than 15 minutes to become competent in ultrasonic testing using the Ultraprobe® 2000.
The Ultraprobe® 2000 can help:
- Reduce unplanned downtime
- Shorten planned outage time
- Diagnose equipment problems quickly
- One person quickly test equipment in an entire section
- Create more efficient scheduling of routine Preventative Maintenance procedures
Description
Key features:
- 3 modes for reporting data: auditory channels, bi-modal analog meter, interface with other devices
- FREQUENCY TUNING enables a user to tune into problem “sounds” while minimizing background interference.
- METER MODE selection adjusts the meter response from a real time response to an averaging response. This feature allows accurate adjustments for leak detection and for mechanical analysis.
- Can be utilized effectively in extremely loud environments
- Frequency tuning adjustment dial: Scale 20-100 kHz with “fixed band” positions for ultra-narrow frequency response
- Training CD produced with footage of actual plant environments
Technical specifications
CONSTRUCTION:

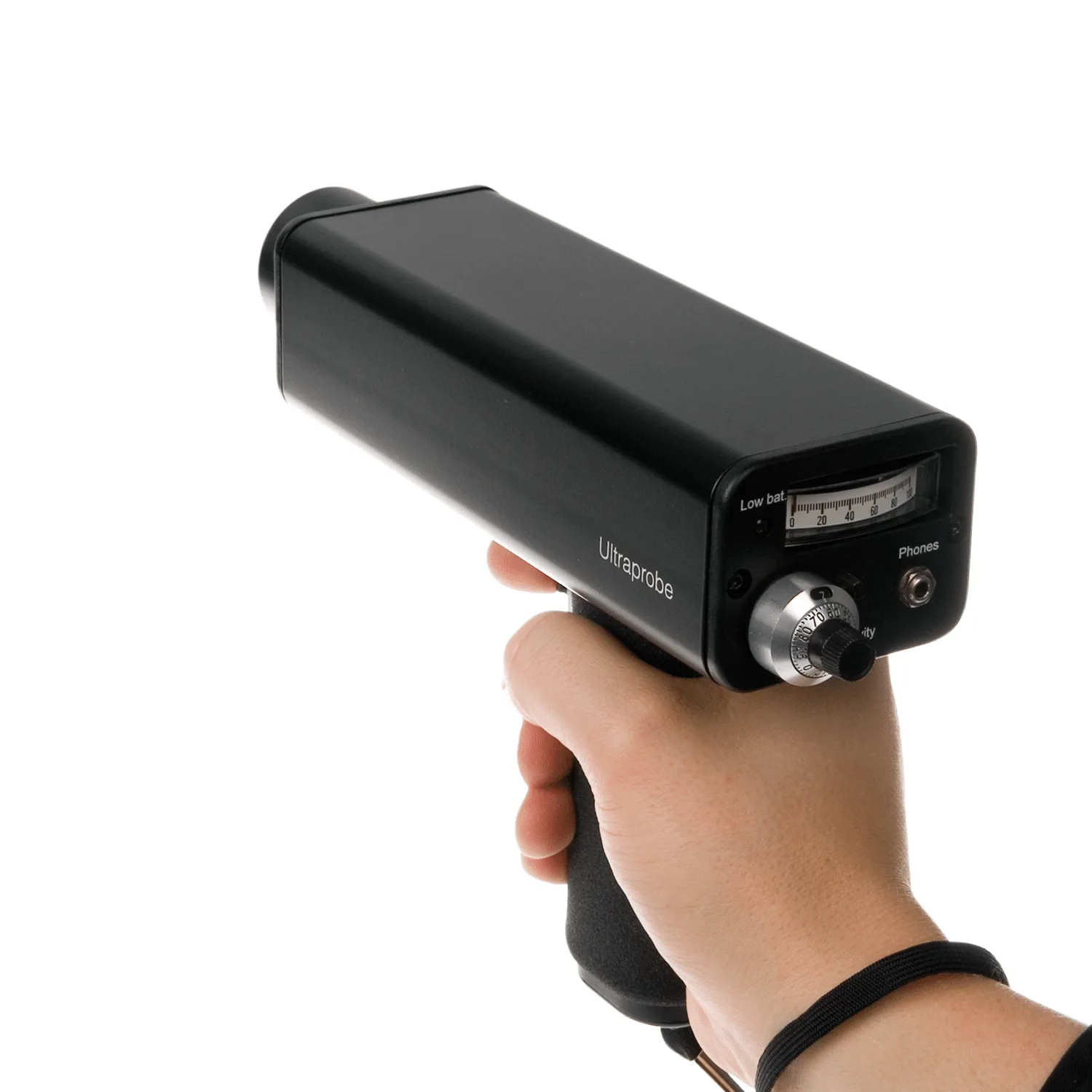

Hand held metered pistol type made with anodized aluminum and ABS plastic
FREQUENCY RESPONSE:
Detect ultrasonic frequencies between 20 kHz and 100kHz, continuously variable. Frequencies are converted to 100 Hz to 3 kHz audio.
PROBES:

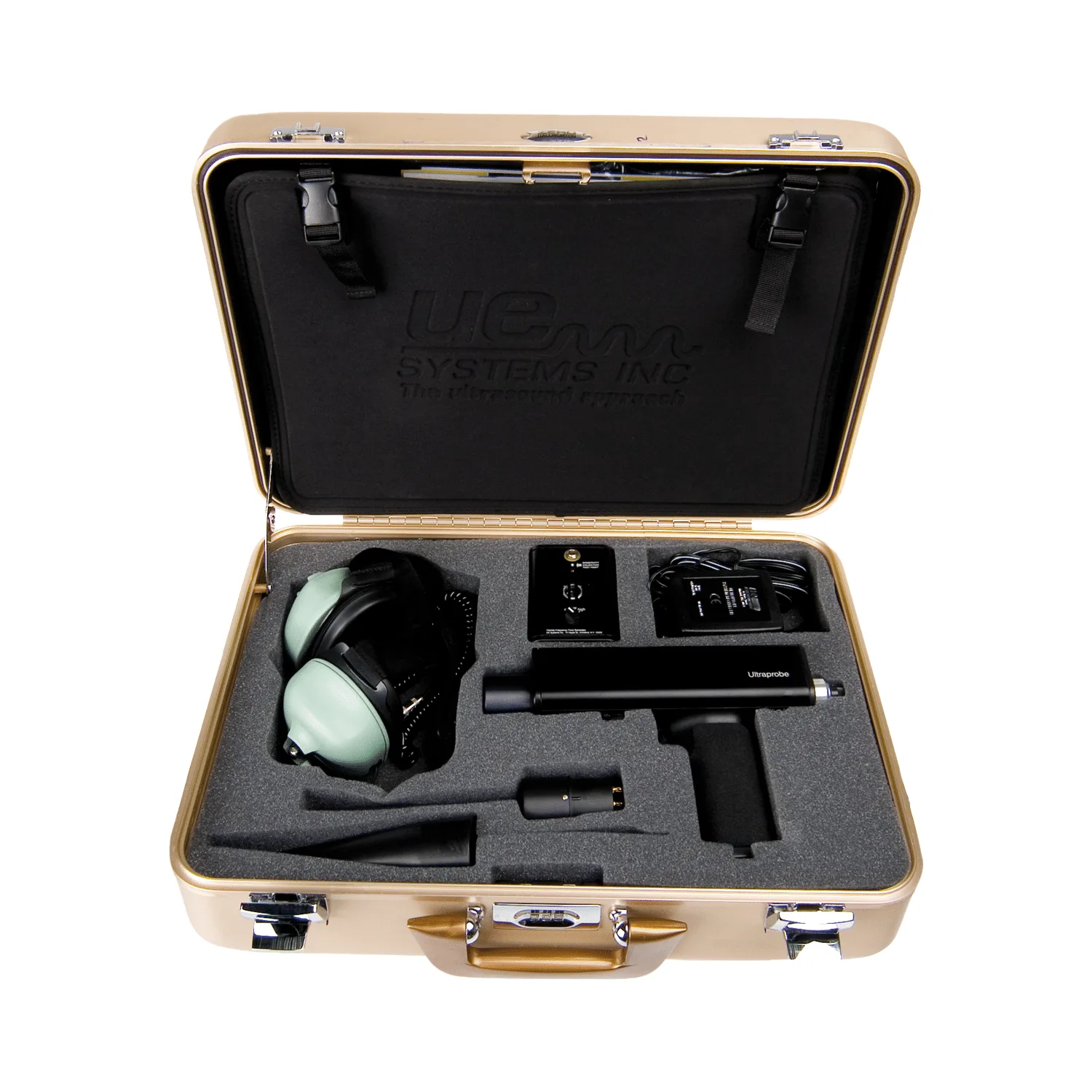

Scanning Module: patented TRISONIC plug-in type consisting of a phased array of multiple transducers for airborne ultrasound. This probe is shielded against RF interface.
Rubber Focusing Probe (flexible) slips over scanning module to concentrate conical directivity and to shield reception of stray ultrasound. Also fits over Stethoscope Module to shield against high ambient ultrasound while unit is at maximum sensitivity.

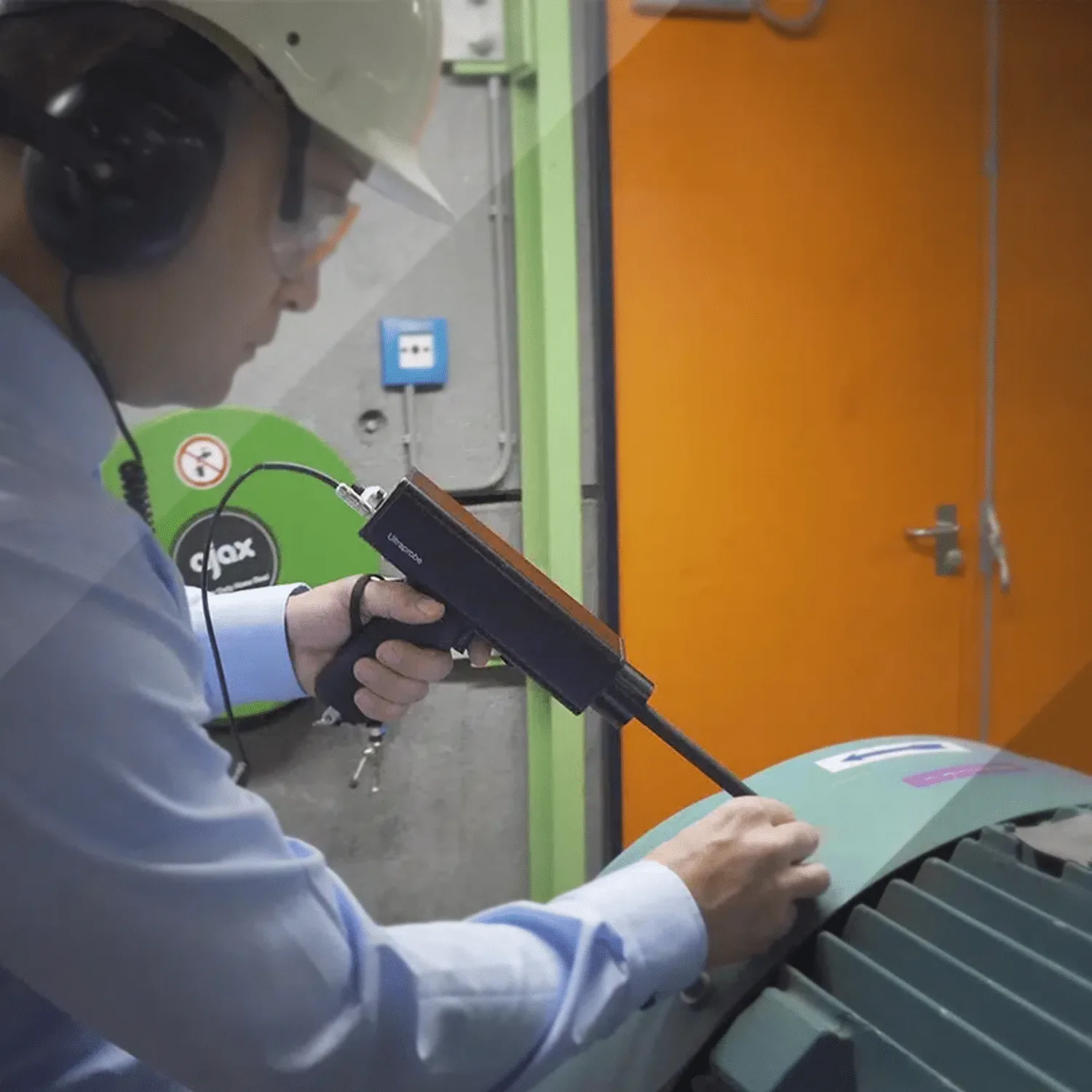

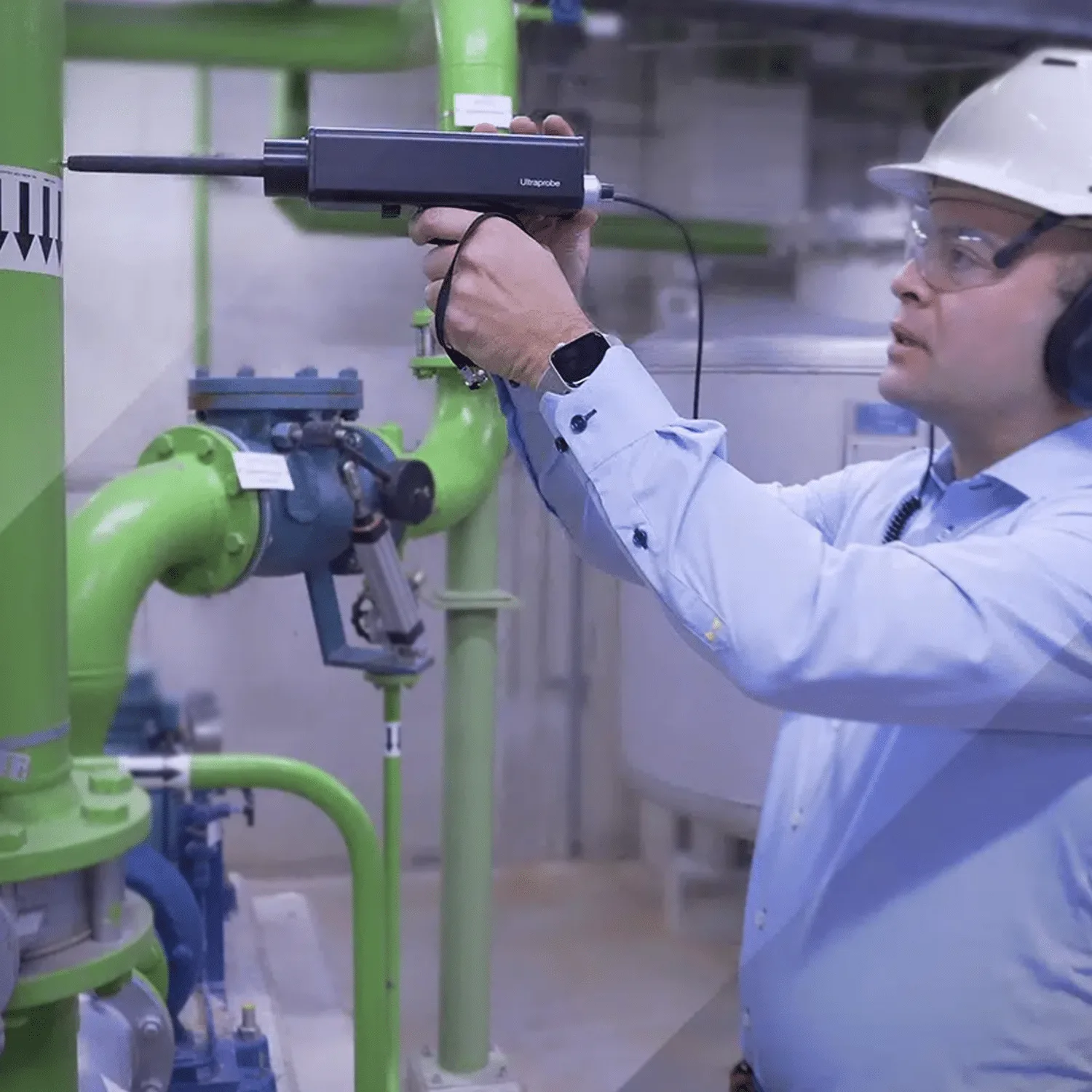

Stethoscope Module: plug-in type, insulated probe with RF shielding; 4 1/2″ (11.4 cm) long steel probe tip, conically shaped for uniform surface contact. Probe tip is interchangeable. Stethoscope Extension Kit: 3 piece, segmented metal rods to increase stethoscope contact range 20″ (50.8.cm) and 31″ (76.2 cm)./p>
TRANSMITTER:
Patented warble tone transmission
HEADSET:
Noise isolating type: double headset wired monophonic, impedance, 16 ohms. Over 23 dB of noise attenuation. Meets or exceeds ANSI specification and OSHA standards.
INDICATORS:
Ballistic output meter: linear calibration scale of 0-100 for logging relative measurements. Meter is accurate 1% throughout entire scale. Low level Battery LED indicator for main housing internal power supply.
BATTERIES:
Self contained nickel-cadmium rechargeable. RECHARGING SYSTEM: Standard 110V. Also available in 220V.
OVER-ALL SIZE:
Complete kit in Zero Haliburton aluminum carrying case: 15″ x 22″ x 7″ (38.1 x 55.9 x 17.8 cm). Pistol unit 2 lbs (.9kg). Complete carrying case: 14 lbs (6.4 kg).
SENSITIVITY:
Detects .005″ (.127 mm) dia. leak @ 5 psi (.34 bar) at a distance of 50 ft (15.24 m)
THRESHOLD*:
1 X 10-² 1 X 10-³ std. cc/sec. freon
*depends on configuration
WARRANTY:
5 Years parts/labor
ULTRAPROBE 2000 KIT:
Meets and exceeds ASTM E1002-93 requirements for Leak Detection.
GOVERNMENT CODES
NSN: 6635-01-156-3927
FSCM (CAGE) Code: 59202
Table of Allowance #s:
788, 404, 576, 583, 607
Covered by one or more of the following patents:
4416145, EP015115, 502674183
Factory Mutual System Approved
Intrinsically Safe, Class 1, Division I, Groups A, B, C & D
American Buerau of Shipping (ABS) TYPE APPROVAL 95-NY-166-X
Det Norske Veritas (DNV)
