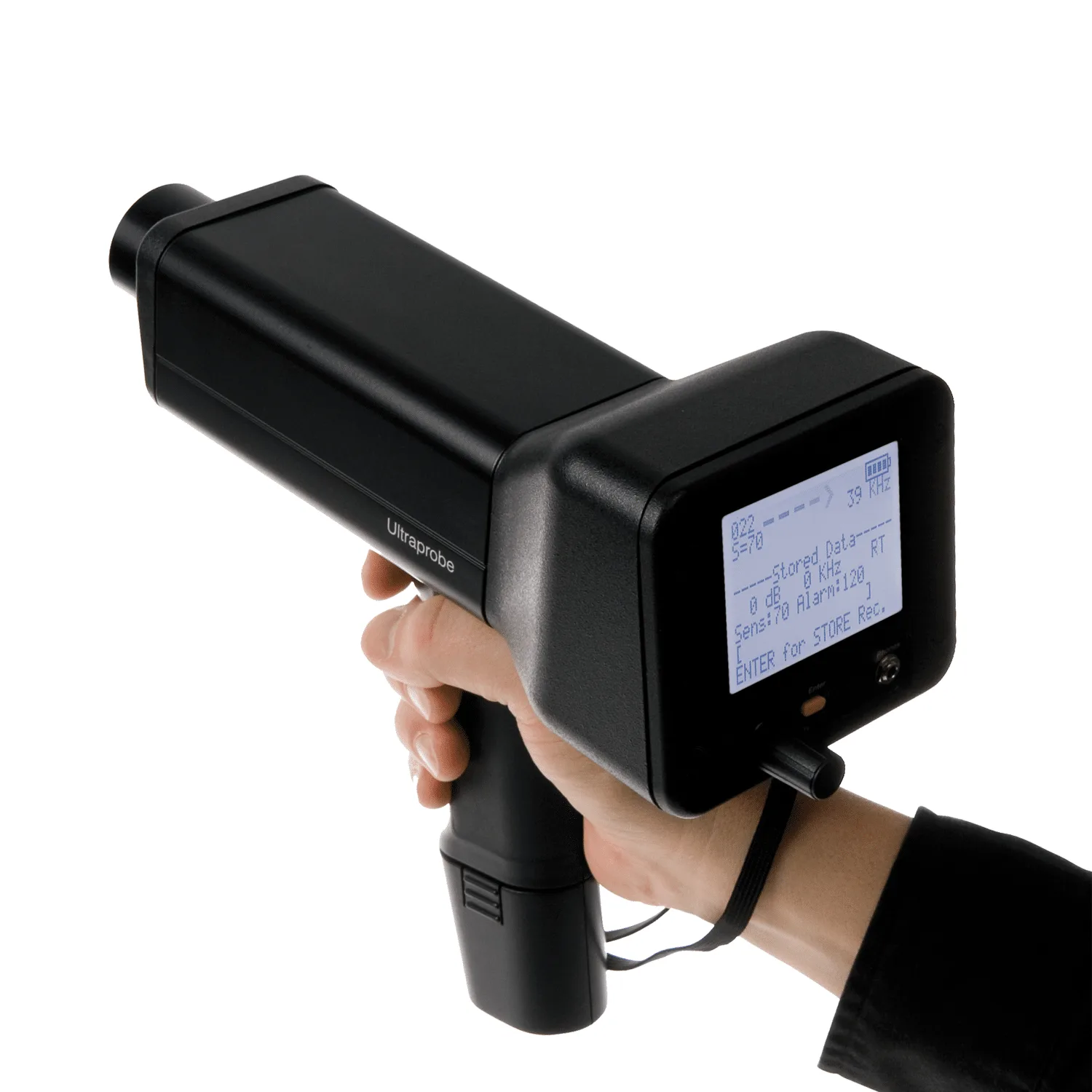

Ultraprobe® 10,000
The Ultraprobe® 10,000 brings Ultrasound Inspection technology to a whole new level. With this one system, inspectors can perform condition analysis, record sounds, store and manage data.
ULTRAPROBE® 10,000: The Ultimate Ultrasonic Asset Management System. Tailored for diverse applications, it features specialized software for precise reporting and analysis with just a click.
With six preset applications and automated field settings, data logging is effortless. Easily download stored data to Ultratrend DMS software and expand inspections by integrating external devices like thermometers and tachometers. Equipped with essential modules like LRM, MMP, and EXC, it ensures comprehensive inspections.

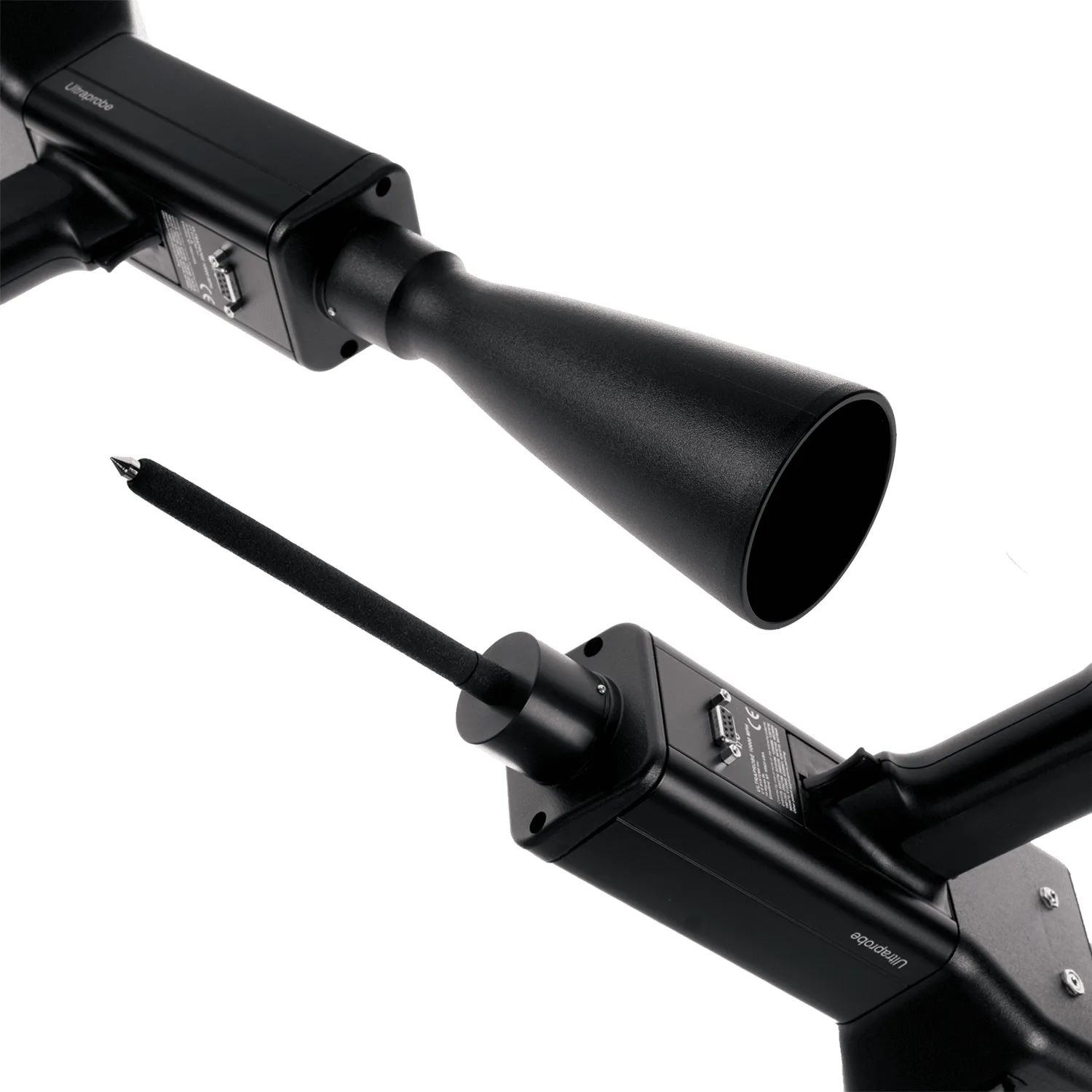

Plus, the long-range module extends detection distance for electrical or leak inspections, with a 10° field of view for pinpoint accuracy, and includes the RAS-MT for hard-to-reach points.
Key features
- On-board Sound Recording
- Record sound sample directly into the instrument
- 6 preset applications Long range module
- 10° field of view R
- AS-MT remote access sensor magnetic mount transducer included
- Spin and Click™ Technology
Description
Features
- Various ways of testing:
- Specialized Application Screens
- Adjustable On/Off Features
- Connect to External Devices
- Flexible Reporting Options
- 6 preset applications: Generic, Leak Valves, Bearings, Electrical or Steam
- Store data from external devices such as thermometers and tachometers
- Includes LRM, MMP, EXC (and more) needed for specialized inspection
- Long range module doubles the detection distance
- 10° field of view allows exact location of problem from safe distances
- RAS-MT remote access sensor magnetic mount transducer included with cable for hard-to-reach test points.
- Spin and Click™ Technology – just by “spinning” and “clicking” you can:
- Locate and Identify Potential Problems
- Store Data
- Change Frequency Quickly
- Change Sensitivity Quickly
- Download via USB Output
- Select “Snap Shot”, “Peak Hold” , “Real Time” and more
