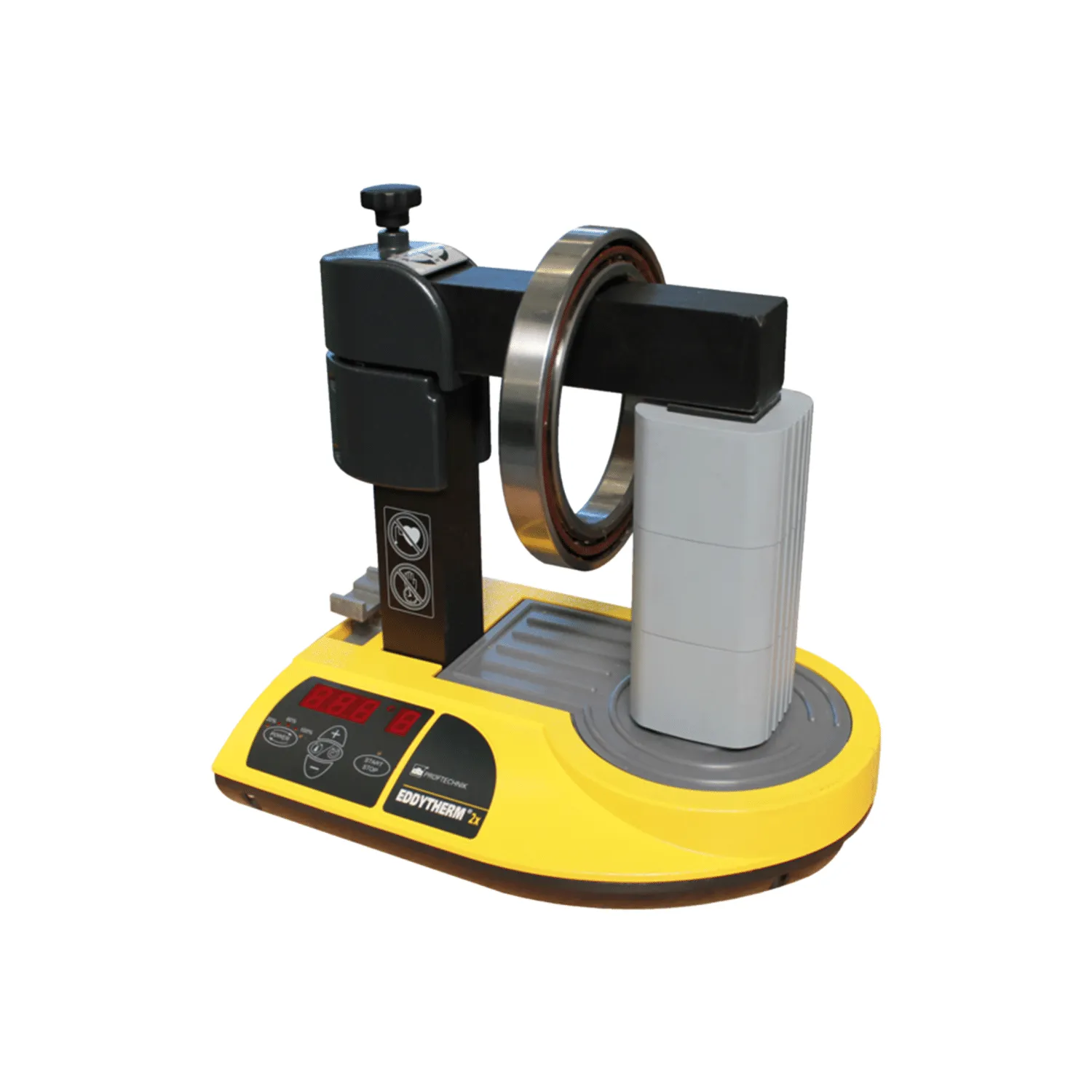

EDDYTHERM 2x
EDDYTHERM 2x - Image 2

EDDYTHERM 2x

For fast and efficient heating and automatic demagnetization.

The EDDYTHERM 2x induction heater is suitable for heating small and medium-sized bearings and other metallic, ring-shaped workpieces up to 80 kg. It uses the same induction principle as in transformers – its core and windings are used as the primary side, but the workpiece acts as a short-circuited secondary winding, which rapidly heats up due to its great electrical resistance.

EDDYTHERM 2x controls the heating by continuously monitoring the workpiece temperature and adjusting its own heating power accordingly. This ensures that the workpiece is heated evenly and the selected temperature is achieved precisely. The crossbar itself remains cool to the touch.

Features
  • Compact
  • Sturdy
  • Safe
Category:

Description

Detailed features

Robust industrial design

  • Equipment for workshop use
  • Heavy-duty construction
  • Suitable to use with work gloves

Environmentally friendly

  • Energy saving
  • No smoke or oil vapour

Safety

  • Automatic error detection
  • Thermal overload protection

Saves bearings

  • No contamination of factory prelubrication
  • Precision ground crossbars reduce vibration, preventing chatter marks on bearings

Demagnetization

  • All EDDYT​HERM® heaters demagnetize workpieces automatically at the end of every heating cycle with no residual magnetism to collect debris.
  • Suitable for bearings up to 80 kg
  • Compact and flexible with movable stand
  • Magnetic temperature probe up to 250°C
  • Available options: Voltage from 200 – 575 V and frequency 50/60 Hz.​
  • Easy operation:
    • Temperature and time selection
    • Temperature display in °C or °F
    • Digital display of set and actual value
    • Acoustic signal at the end of heating cycle
    • Dust, oil and water-resistant operator panel
    • Straightforward operation
    • Automatic demagnetizing
  • Thermal overload protection

Summary of Features

  • Robust industrial design
  • Easy operation
  • Environmentally friendly
  • Safety
  • Saves bearings
  • Automatically demagnetizes
  • Suitable for bearings up to 80 kg
  • Compact and flexible with movable stand
  • Magnetic temperature probe up to 250°C
  • Available options: Voltage from 200 – 575 V and frequency 50/60 Hz
  • Magnetic temperature probe up to 250°C
  • Thermal overload protection​
