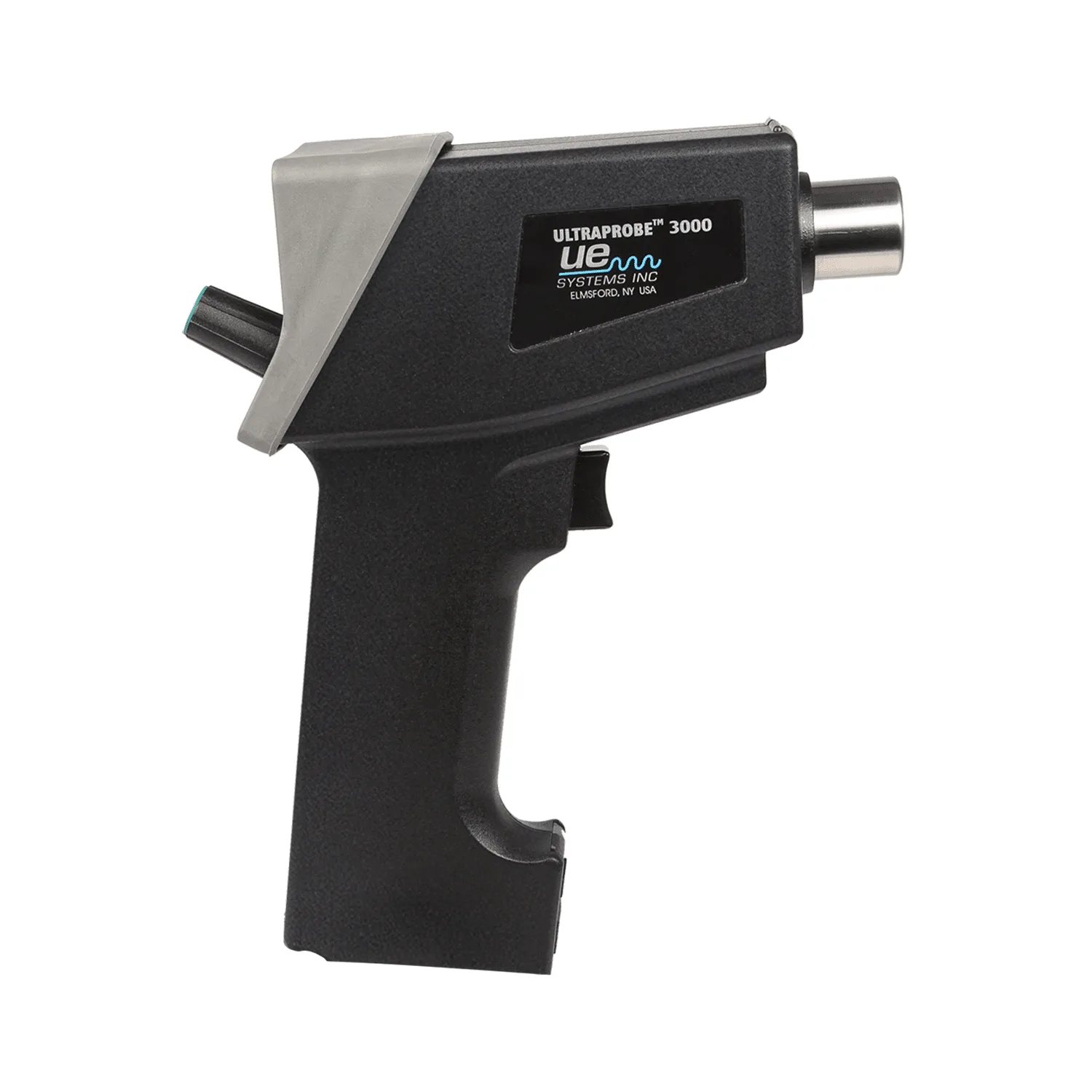

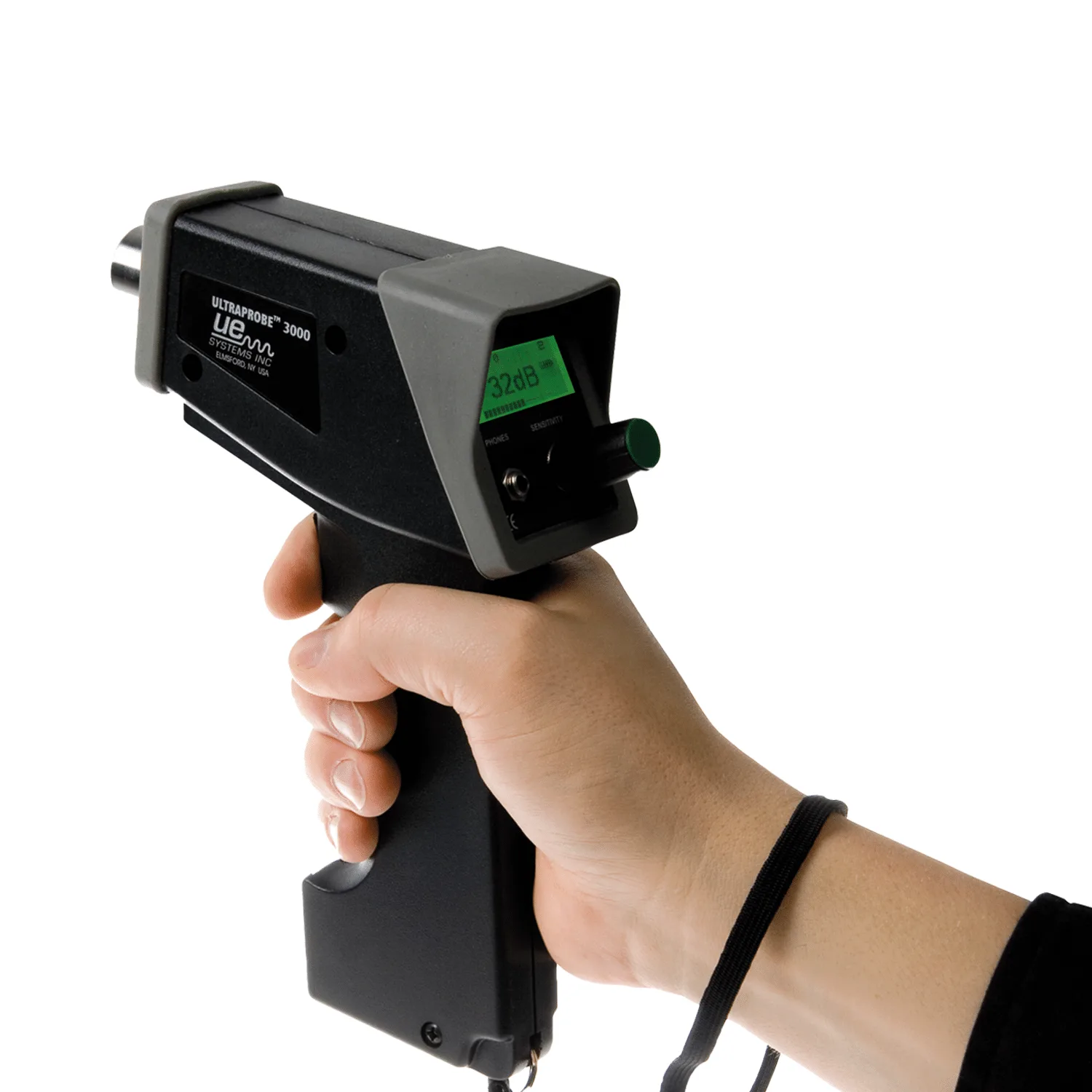

Ultraprobe® 3000
Experience the advantages of airborne/structure-borne ultra-sonic inspection with the Ultraprobe 3000.
This digital inspection system is fully equipped to detect energy waste, and locate mechanical and electrical problems, with many features that will help you inspect in the most challenging environments.
The Ultraprobe 3000 – compact, lightweight, and high-performing. Digitally powered, it efficiently records and downloads test data for steam trap and compressed air inspections. Featuring intuitive design and UE Systems’ “Spin and Click” technology, adjusting sensitivity and storing data is seamless. Backed by Ultratrend DMS, it offers comprehensive analysis and report generation.
Elevate your Energy and PdM programs with the Ultraprobe® 3000 Digital Inspection Systems. Versatile and eco-friendly, it enhances equipment health, reduces energy waste, and improves uptime, all while saving costs. With advanced features and portability, the Ultraprobe® 3000 ensures effective inspection in any environment.
- Wide, dynamic sensitivity range
- “Spin and Click” operations to customize your inspection modes, store and view data and adjust instrument settings

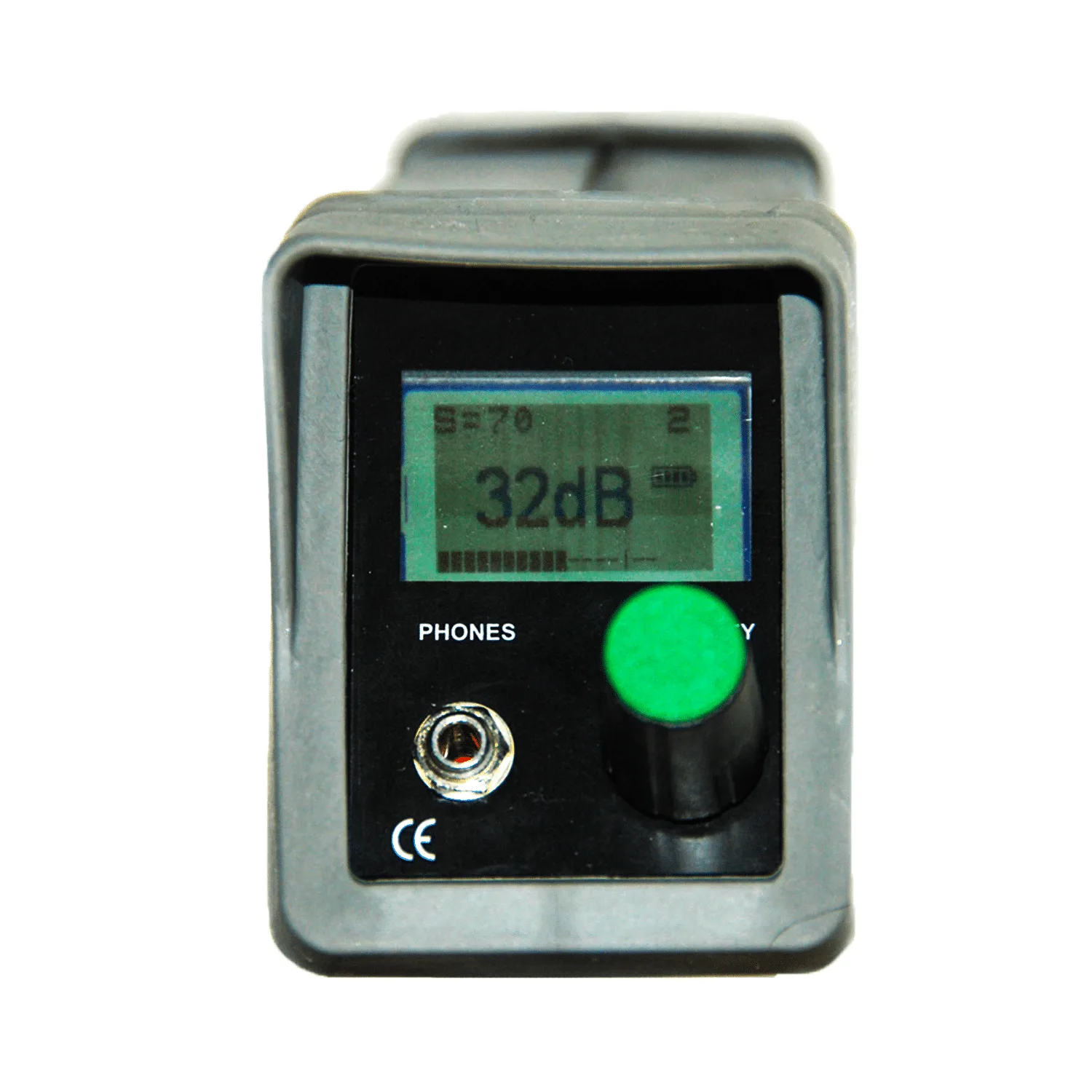

- Easy-to-read display panel with calibrated decibel readout and a 16 segment bar graph
- Store, overwrite, or enter data in a new location
- 400 Memory locations hold all your test data
- Scanning and stethoscope (Contact) plug-in modules
- Update system software online
Description
Specifications
- Construction: Hand-held pistol type made with ABS plastic
- Circuitry: Solid state analog and SMD digital circuitry with temperature compensation
- Frequency: Frequency response: 35-45 kHz
- Response Time:
- Display: 128×64 Graphic LCD with LED backlight
- Memory: 400 storage locations
- Battery: Li Polymer Rechargeable
- Operating Temp: 32° Fm 122° F(0° C to 50° C)
- Output(s): Calibrated heterodyned output, decibel (dB) frequency, USB data output
- Available Probes: Scanning module and stethoscope (contact) module, long range module, RAS MT
- Headset: Deluxe noise attenuating headphones. Over 23 dB of noise attenuation. Meets or exceeds specifications and OSHA standards
- Indicators: dB, battery status and 16 segment bar graph, sensitivity setting, record number
- Threshold: 1 x 10-2 std: ccIsec to 1 x 10-3 std. cc/sec

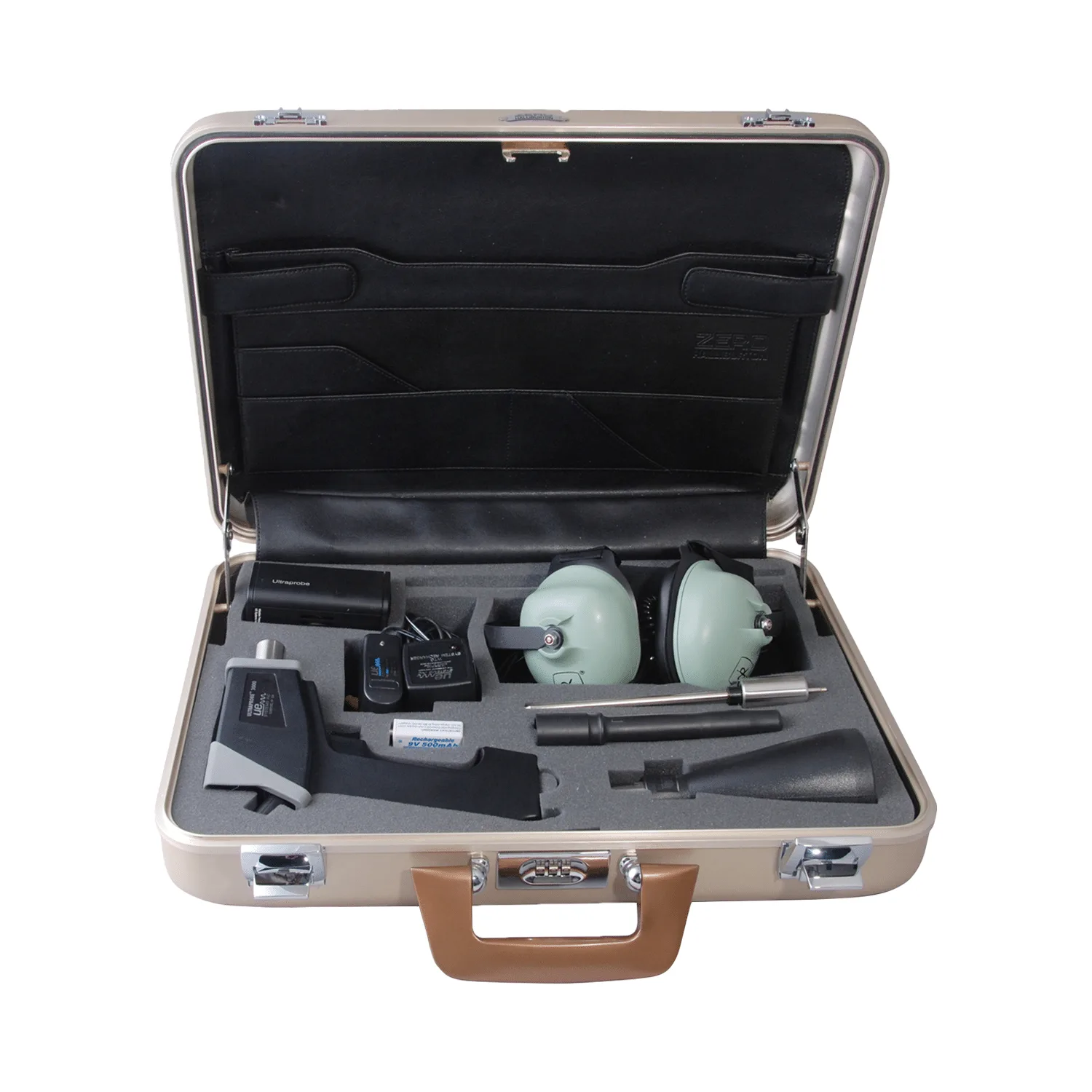

- Dimensions: Complete kit in Zero Halliburton aluminum carrying case 15″ x 22″ x 5″ (38.1 x 55.9 x 11.43 cm)
- Weight: Pistol Unit: 1 lb (.45 kg) Carrying Case: 11 lbs (4.99 kg)
- Warranty: 1 year standard, 5 years with completed registration form
