FLIR CM57-2

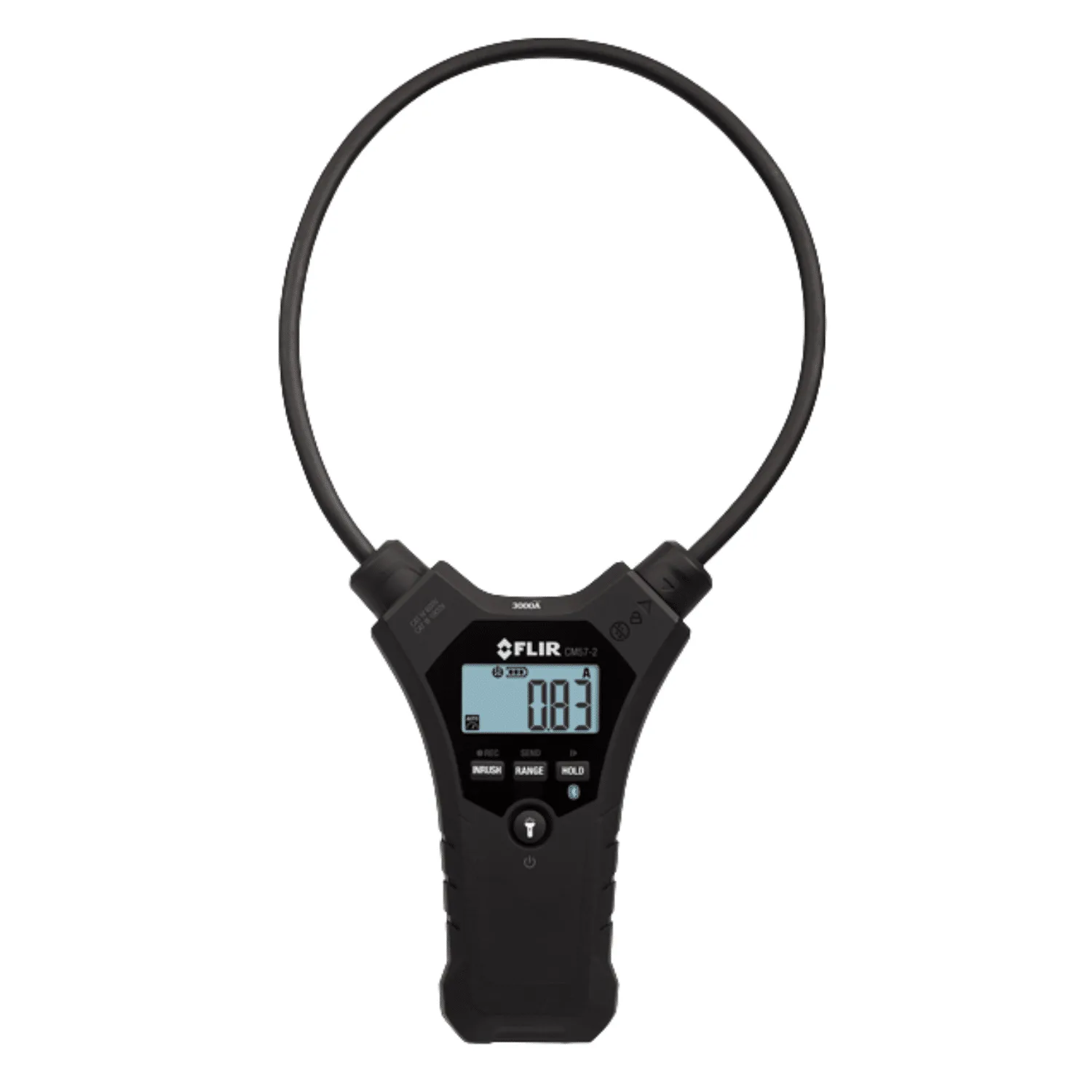

FLIR CM57-2 Flexible Clamp Meter
The FLIR CM57-2 is a versatile clamp meter designed for challenging current measurements. Its 18-inch (45.72 cm) flexible coil lets you easily measure in tight spaces, making it ideal for multiple-conductor and double-wrap applications. Equipped with dual LED work lights and AC current ranges from 30 A to 3000 A, it ensures accuracy and visibility in any environment. Stream live data to your mobile device via Bluetooth® and use the METERLiNK® app to compare logs, set alarms, generate reports, and share readings with your team in real time.
Description
| AC Current Bandwidth | 45–500 Hz (sine wave) |
|---|---|
| AC Current Ranges and Resolution | 30.00 A, 300.0 A, 3000 A |
| AC Response | True RMS |
| Basic AC current accuracy [of reading] | ±3.0% + 5 digits |
| Display Rate | 2 times per second |
| Flex Coil Length | 45 cm (18 in) |
| Flex Coil Tip Diameter | 13 mm (0.5 in) |
| Inrush Current | Minimum 0.5 A, 100 mS |
| Max Conductor Diameter | 12 cm (4.7 in) |
| Maximum AC current | 3000 A AC |
| Maximum resolution | 0.01 A |
| Measurement Rate | 1.5 samples per second, nominal |
| Positional Error [distance from optimum] | 35 mm (1.4 in) ±1.0%, 50 mm (2.0 in) ±1.5%, 60 mm (2.4 in) ±2.0% |
