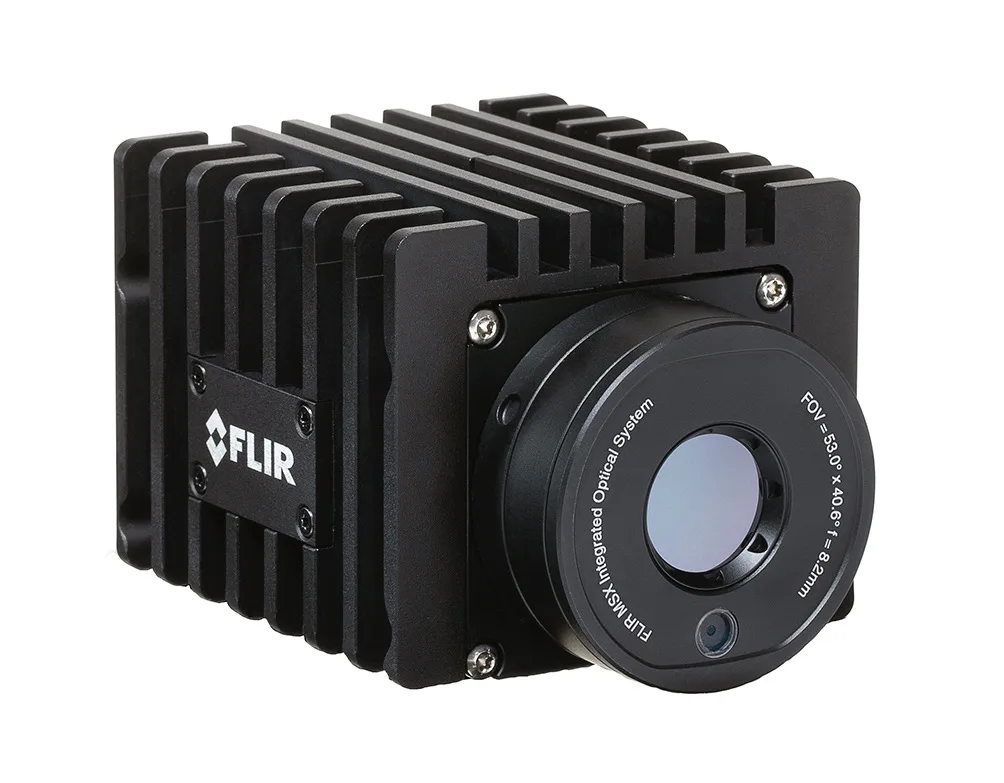

FLIR A50/A70 Research & Development Kits (Uncooled LWIR)
R&D Kits configured to be affordable, ready-to-run solutions for a multitude of applications requiring detailed thermal data acquisition and analysis.
These kits are the right choice for researchers who need to fully understand the thermal profiles of their designs or require defensible thermal data to support critical decisions. Users can quickly view, record, analyze and share thermal data with the included FLIR Research Studio software or take advantage of industry-standard connections to integrate into custom software applications when needed. The Research & development Kits are available in the following configurations, with respect to detector resolutions and optics. Each camera is configured with a specific, manual focus lens, that is not user interchangeable. The specification sheet provided is for a specific camera model and lens, with that being the major differences. For a specific datasheet please contact us!
Description
| Model | Detector Resolution | Lens (One Camera, OneLens) |
| A50 R&D Kit | 464 x 348 | 29° / 51°/ 95° |
| A70 R&D Kit | 640 x 480 | 29° / 51°/ 95° |
Each kit contains:
- Camera with Advanced Image Streaming configuration and 29° lens
- Hard case
- Ethernet cable M12 to RJ45, 2 m
- Ethernet cable M12 to RJ45F, 0.3 m
- Ethernet cable CAT6, 2 m/6.6 ft
- Cable M12 to pigtail, 2 m
- Gigabit PoE injector 16 W, with multi-plugs
- Antenna WLAN 2.4/5 GHz + Wi-Fi
- Cooling plate
- Focus adjustment tool
- Visual camera including MSX
- Research Studio, Standard Edition – 1 Year Subscription (Online Activation)
- Printed documentation including the username and password for log in to the web interface of the camera
