Atten2 OilWear

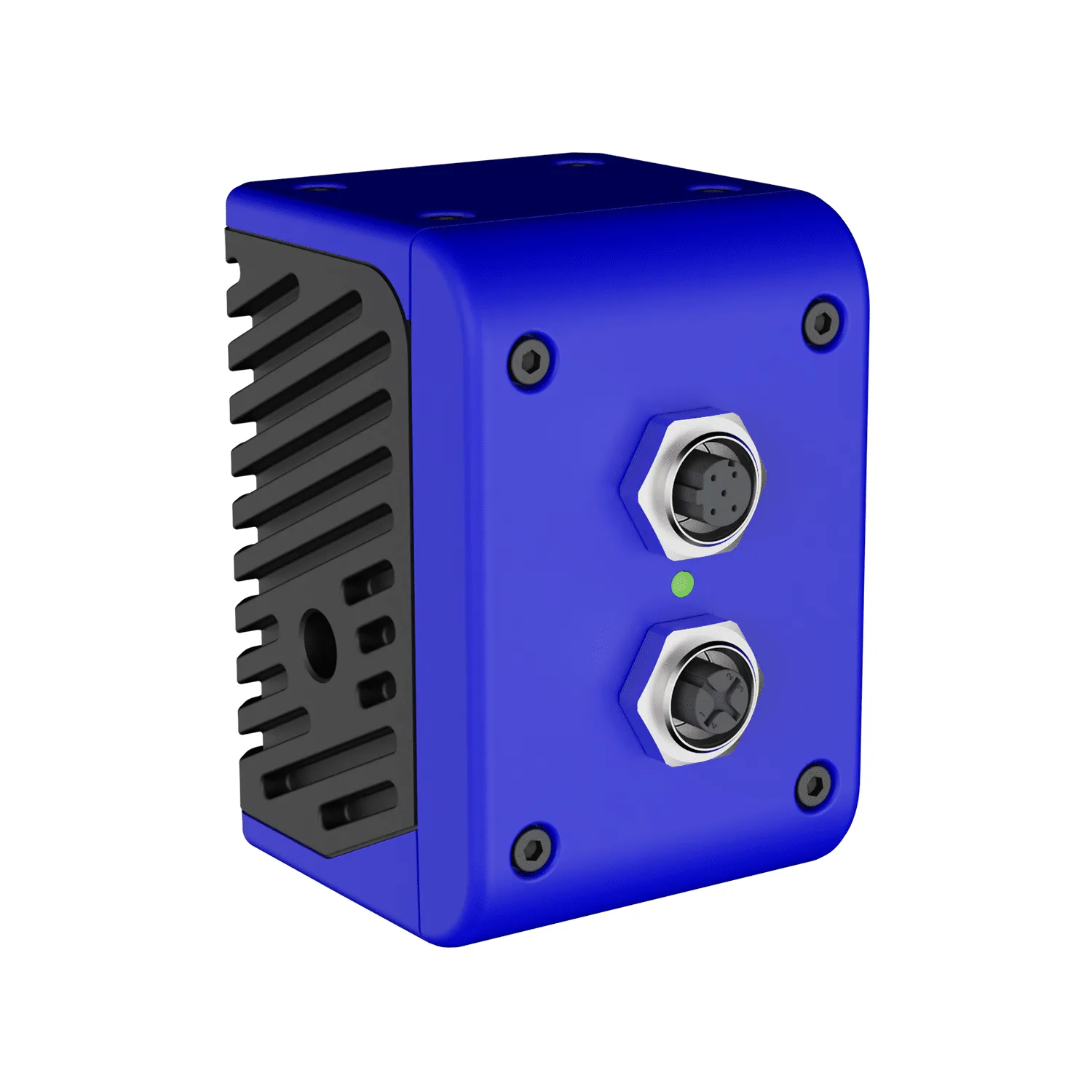

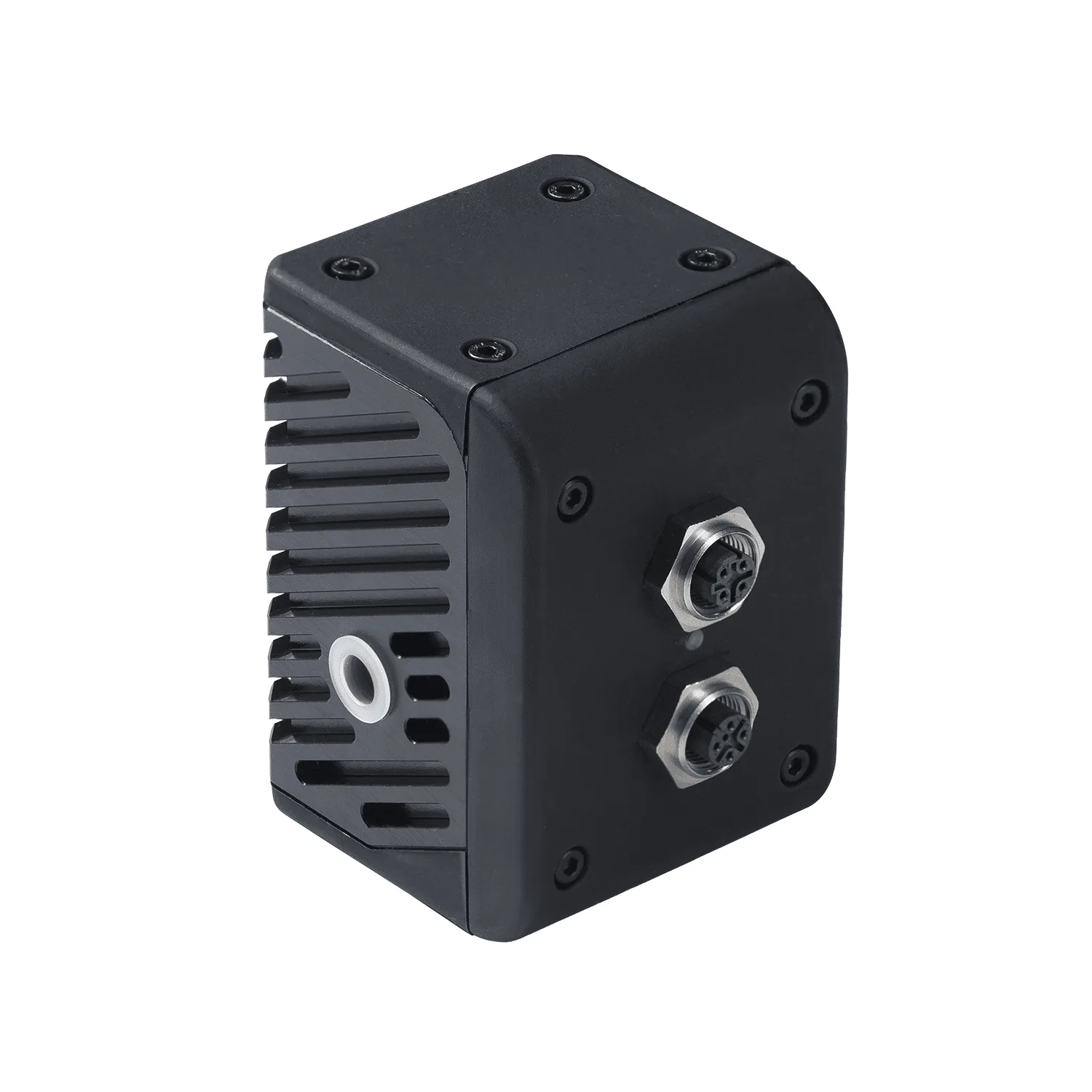

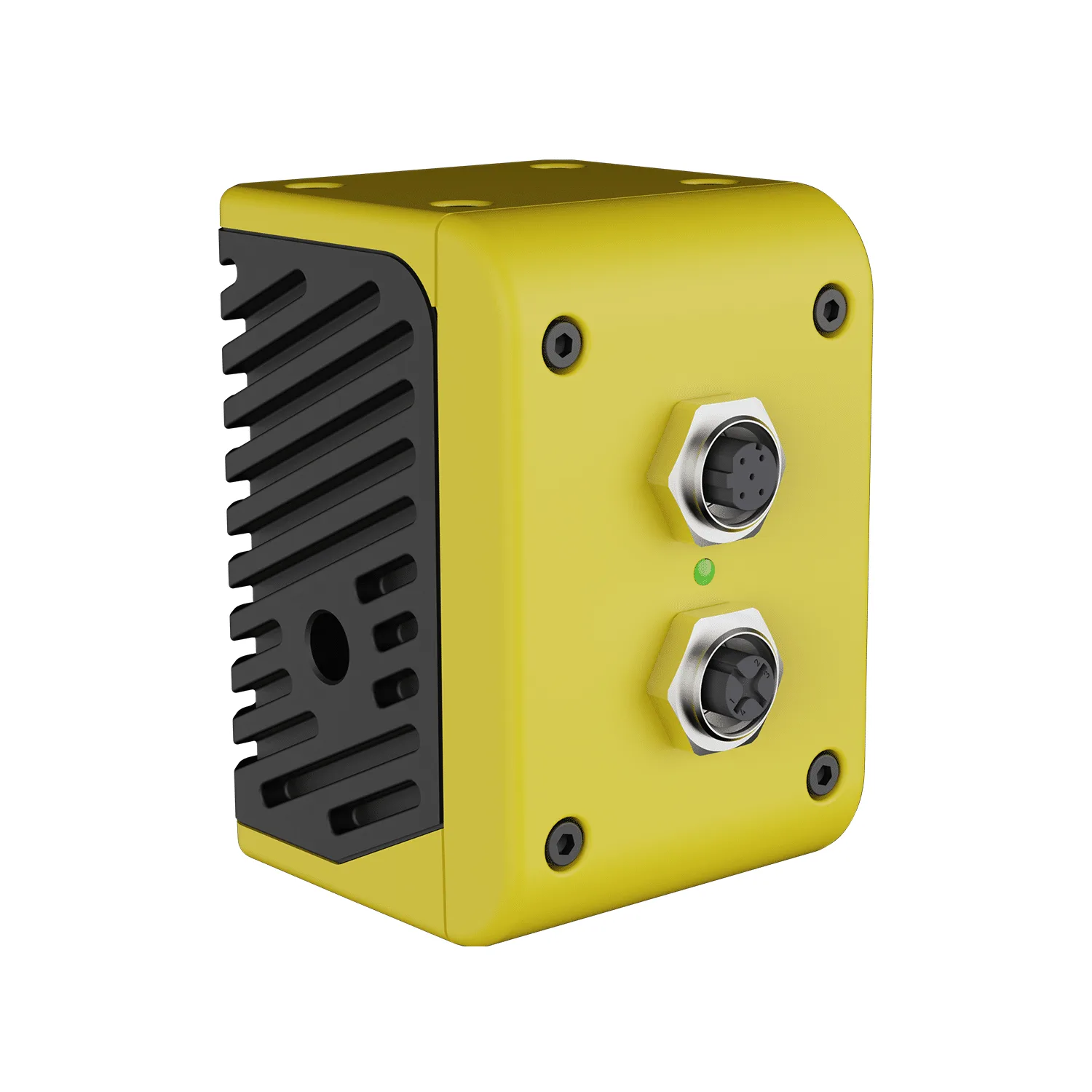

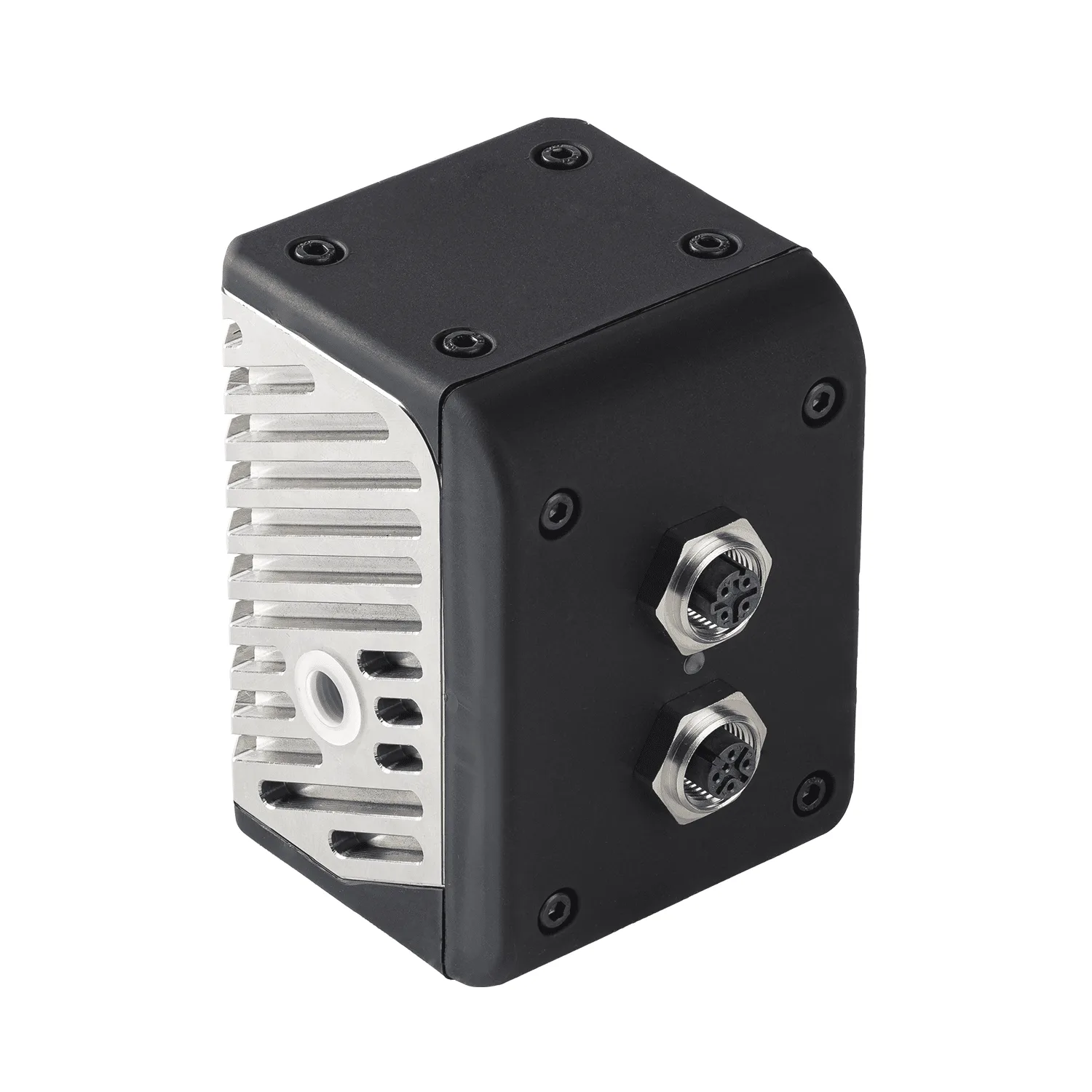

Atten2 OilWear® Sensor: Much more than a particle counter. OilWear® detects anomalies in real time, providing information for preventive incident resolution.
The OilWear® online sensor stands out as a one-of-a-kind device in its category. Its exceptional capabilities allow it to identify particles and bubbles larger than 4 microns present in machine fluids, effectively sorting them into six different size ranges. The sensor’s primary functionality revolves around the online operation, ensuring that it provides instantaneous and up-to-date information about the machine’s condition.
By gauging fluid contamination levels, it offers valuable insights into the real-time status of the equipment. The sensor’s design is both robust and modular, making it incredibly adaptable and seamlessly integrated into any asset CMS or data acquisition system. This versatile feature allows it to be effortlessly incorporated into various industrial machinery setups, boosting their overall efficiency and reliability. In the realm of industrial machinery maintenance and monitoring, OilWear® takes the lead with its advanced solution.
By facilitating preventive maintenance, it helps prevent potential issues before they escalate, minimizing downtime and maximizing productivity. With its cutting-edge technology, this sensor offers an indispensable tool for ensuring the smooth operation and longevity of critical machinery.
Description
Series C 100
- Particle counting as per ISO 4406 standard 4 microns.
- Discrimination and counting of air bubbles.
- Particle classification in 6 (4, 6, 14, 21, 38, 70 μm).
Series S 120
- Particle counting as per ISO 4406 standard 4 microns.
- Discrimination and counting of air bubbles.
- Particle classification in 6 ranges(4, 6, 14, 21, 38, 70 μm).
- Oil degradation.
- Shape analysis for the root cause.
Series S 120 SS
- Particle counting as per ISO 4406 standard 4 microns.
- Discrimination and counting of air bubbles.
- Particle classification in 6 ranges(4, 6, 14, 21, 38, 70 μm).
- Oil degradation.
- Shape analysis for the root cause.
- Fluid image storage.
- Stainless steel material for applications with corrosive fluids.
Series S 120 EX
- Particle counting as per ISO 4406 standard 4 microns.
- Discrimination and counting of air bubbles.
- Particle classification in 6 ranges (4, 6, 14, 21, 38, 70 μm).
- Oil degradation.
- Shape analysis for the root cause.
- Fluid image storage.
- For explosive atmospheres CE Ex II 3G Ex ec op is IIB T4 Gc.
